10–100mm
(Fast Battery Swapping)

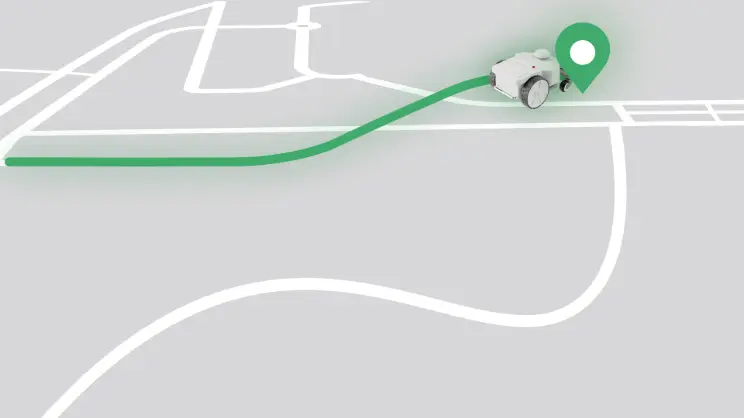

Planning
Avoidance

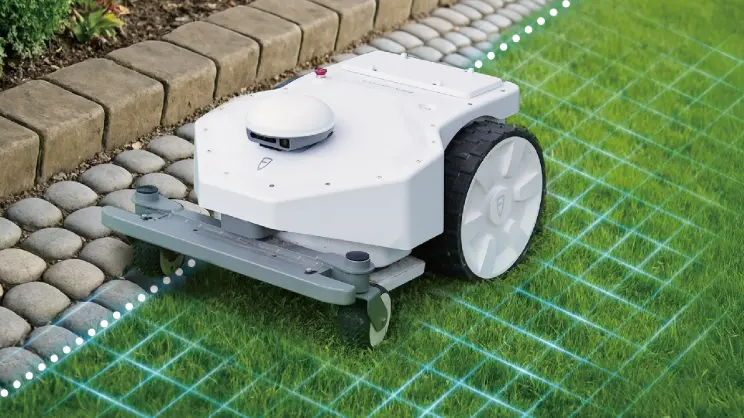

Boundary
24x7 Mowing
& Multi-Field Management

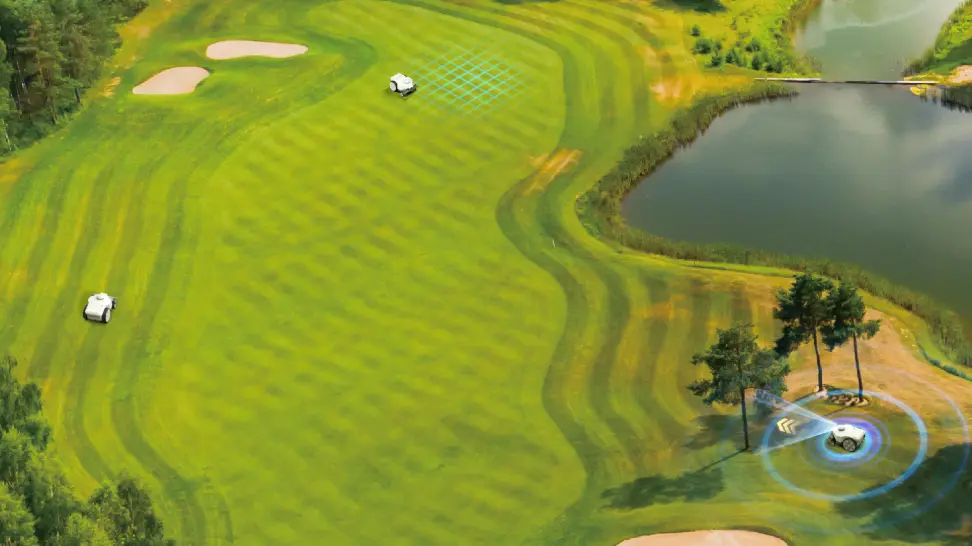

Professional Mowing Solution
For Golf Courses
-
Fleet ManagementCloud maps control for multi-field, multi-mower operation.
-
Up to 96,000㎡ in 3 Days
*Calculated based on 24-hour operation. Actual coverage depends on user working hours.
-

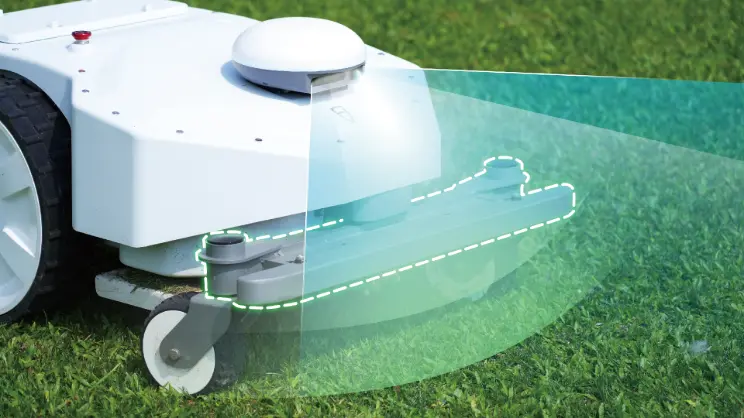

RTK + Vision NavigationStable mowing performance even under the tree shades.

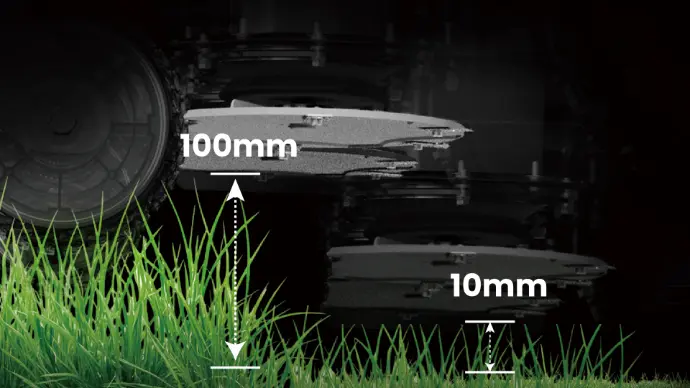

Ultra-Wide Cutting Height Range
Adjustable from 10mm to 100mm — perfect for both fairways and roughs.

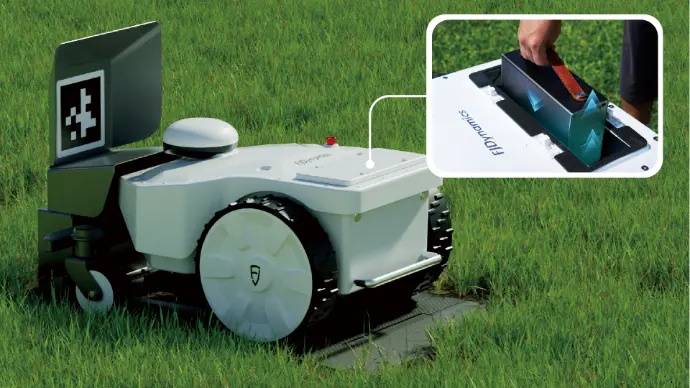

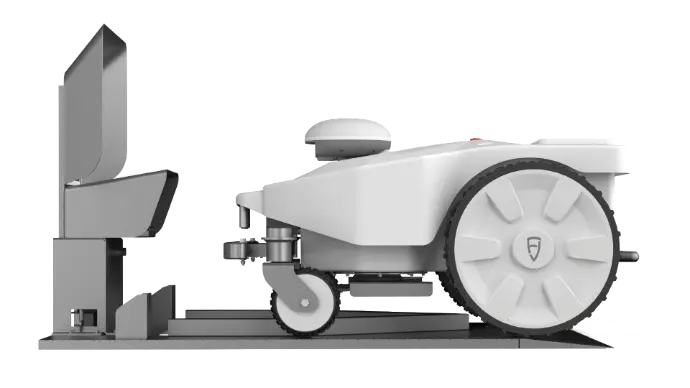

Flexible Charging Options
Fast battery swapping for 24/7 mowing.
Auto-charging for fully unmanned operation.
Auto-charging for fully unmanned operation.

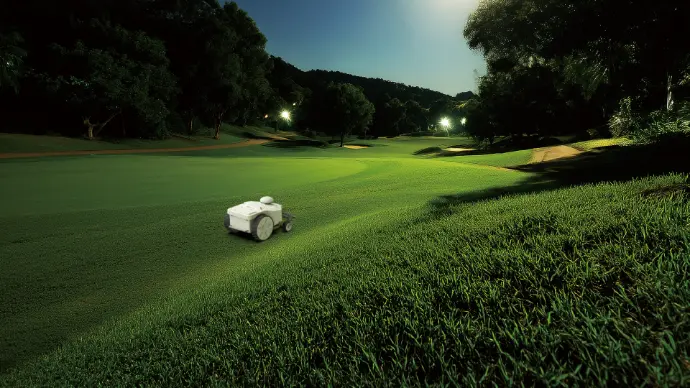

Nighttime Quiet Operation
Area Free up the course during the day.
Damage-Free Unmanned Mowing
Lightweight & turf-friendly design
Professional Mowing Solution
For Sports Fields
-

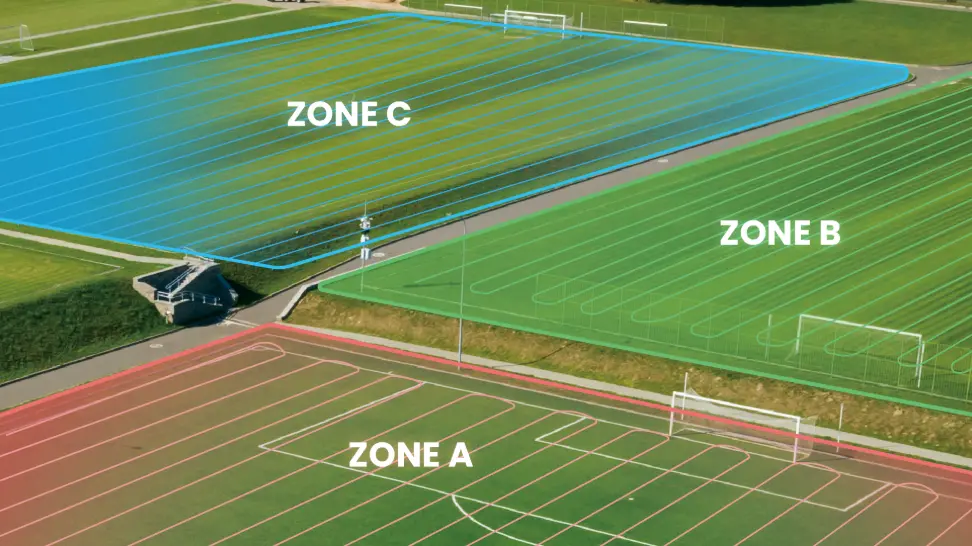

Multi-Field Management for Efficient MowingAchieve simultaneous mowing on multiple sports fields and automatically go to the next field upon completion.
-
Hassle-Free Mowing and Precise TrimmingSupport 10mm minimum height, ideal for sports fields. One full charge covers the whole field.
-

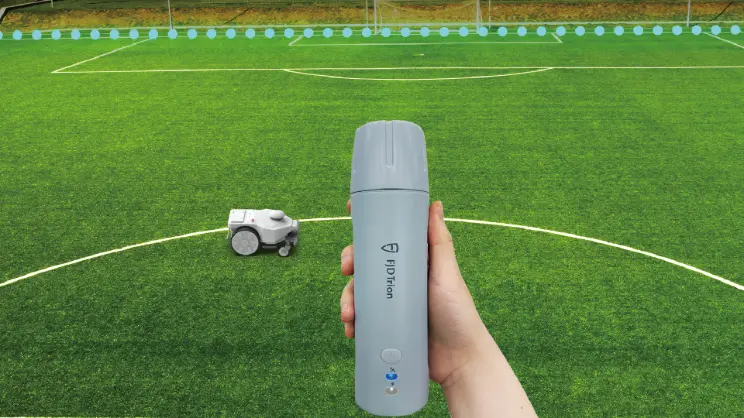

Safety First & Easy To Use

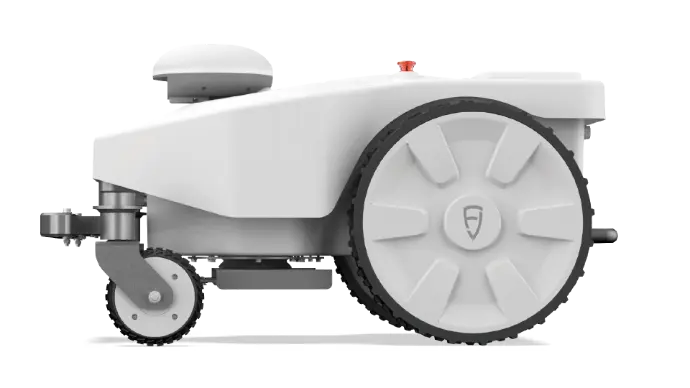

High-Performance Chassis
Ultra-Light Chassis for Easy Transportation
Ultra-light chassis design for effortless handling and easy transport
by just two people.
by just two people.

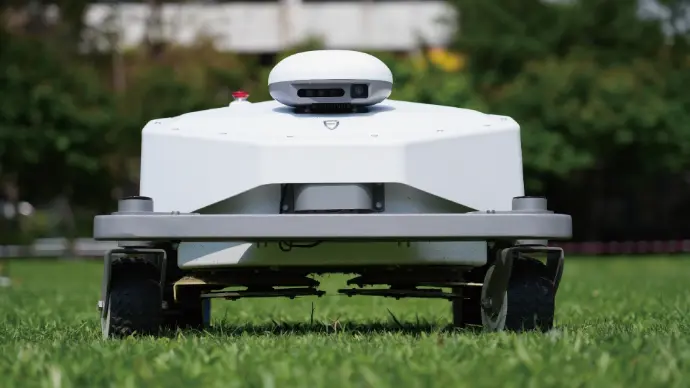

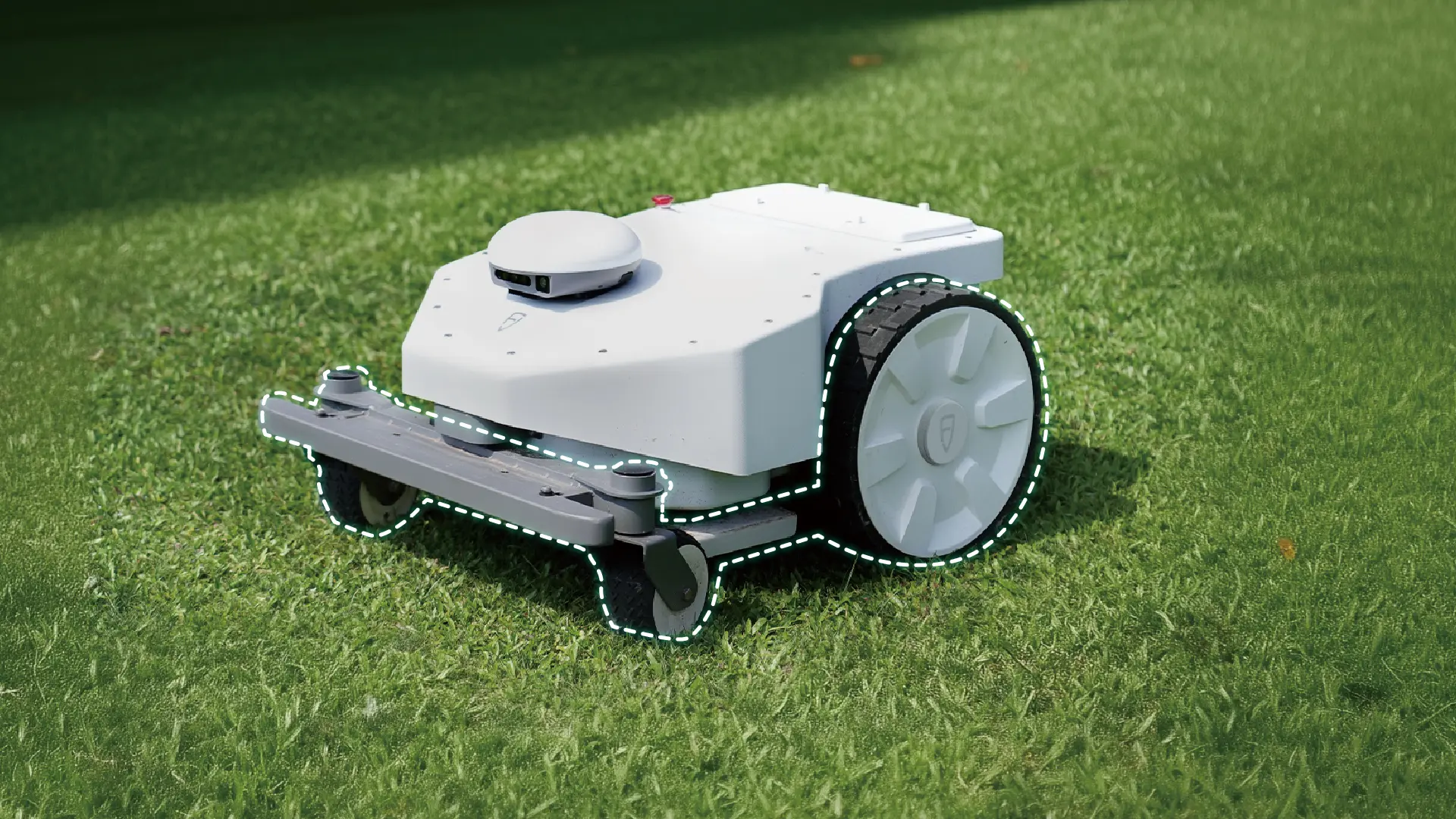

Front Suspension Chassis for Stable Operation
Ensure stable operation on uneven terrain, providing a smooth mowing
experience.
experience.

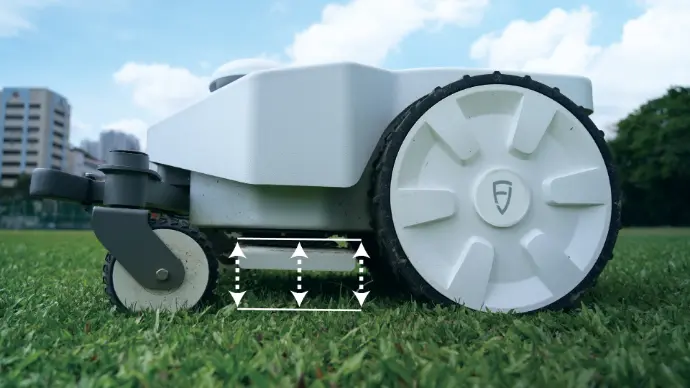

Cutting Disc Auto-Lifting

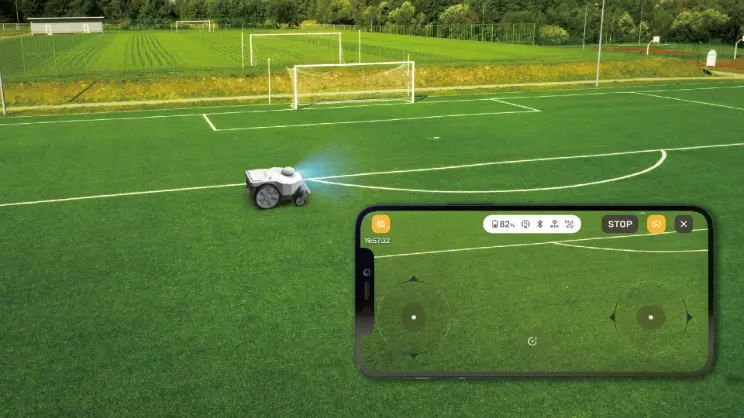

Adjust the mowing height in real time via remote control based on seasonal changes and mowing needs.

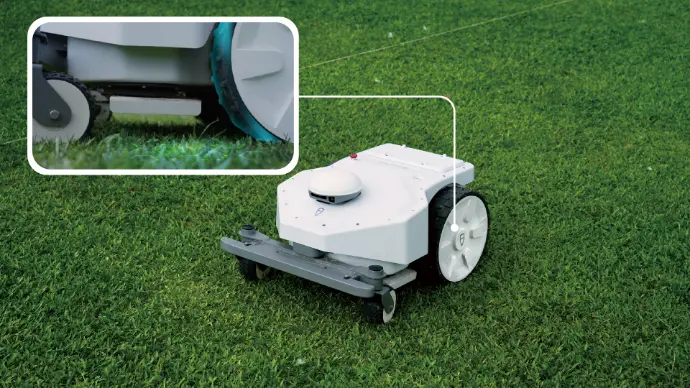

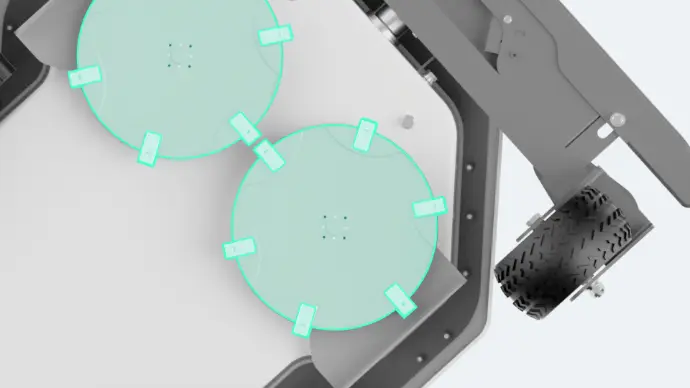

Suspension Cutting Disc
Feature an independent suspension unit for each cutting disc that auto-matically adapts to uneven terrain, ensuring a flawless mowing result without scalp damage.

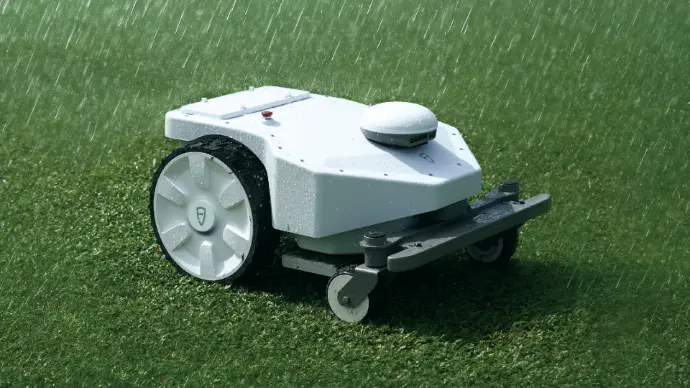

IPX5 Waterproof Design
Eliminate the worry of water immersion, whether it is rainy day operation or daily cleaning.
Application Scenarios
Golf Courses
Sports Fields
Public Green Spaces
Specifications
|
|
FRX Swap
|
FRX Stationary
|
|
Mowing Capacity
|
||
|
Fast battery swapping mode
*Calculated based on 24-hour operation. Actual
coverage depends on user working hours.
|
72h Maximum coverage 96,000m² (23.7 acres)
24h Maximum coverage 32,000m² (7.9 acres)
|
72h Maximum coverage 96,000m² (23.7 acres)
24h Maximum coverage 32,000m² (7.9 acres)
|
|
Automatic charging mode
|
- |
72h Maximum coverage 60,000m² (14.8 acres)
24h Maximum coverage 20,000m² (4.9 acres)
|
|
Max mowing area per charge
|
4000m² (0.5 kWh) / 8000m² (1 kWh)
|
4000m² (0.5 kWh) / 8000m² (1 kWh)
|
|
Max climbing ability
|
20°
|
20°
|
|
Max mowing slope
|
15°
|
15°
|
|
Front suspension chassis
|
●
|
●
|
|
Boundary type
|
Virtual wire
|
Virtual wire
|
|
Cutting mode
|
Custom angle mowing
|
Custom angle mowing
|
| Overall Dimensions | ||
| Weight | 62 kg | 83.7 kg |
| Dimensions | 967.6*757*513 mm / 38.1*29.8*20.2 in. | 1278*782*739.9 mm / 50.3*30.8*29.1 in. |
| Software update | OTA | OTA |
| Connectivity | 4G, Wi-Fi, & Bluetooth | 4G, Wi-Fi, & Bluetooth |
| IP rating | IPX5 | IPX5 |
| Cutting System | ||
| Cutting height | 10–100 mm / 0.4-4 in. | 10–100 mm / 0.4-4 in. |
| Cutting width | 520 mm / 20.5 in. | 520 mm / 20.5 in. |
| Travel speed | 0–4 km / h | 0–4 km / h |
| Cutting disc (6 pivoting razor blades per disc) | 2 | 2 |
| Battery & Charging | ||
| Charging mode | Manual (only) | Manual & automatic |
| Fast battery swapping | ● | ● |
| Battery life | 160 min | 160 min |
| Charging time | 120 min | 120 min |
| Positioning and Navigation | ||
| Positioning | RTK & vision | RTK & vision |
| NTRIP | ● | ● |
| FJD base station & CORS station | ● | ● |
| Factory Configuration | ||
| Complete mower | ● | ● |
| Portable charger | ● | ○ |
| Auto-charging station | - | ● |
| 0.5 kWh battery | ● | ● |
| 1 kWh battery | ○ | ○ |
| High-strength cutting blade | ○ | ○ |
| Handheld point maker | ○ | ○ |
| FJD base station | ○ | ○ |
| Independent anti-theft module | ○ | ○ |
○ Optional / ● Standard / -Unavailble
