Specifications

guidance system,affordable,manual steering system,tractor guidance system,manual steering,manual driving,tractor gps,driver assist technology,tractor system,virtual terminal

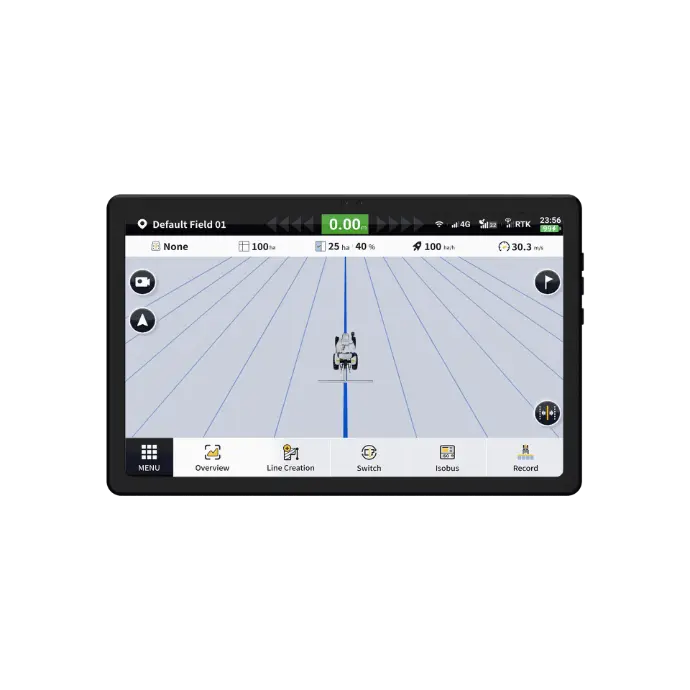

Guidance Terminal

  •  Screen  Type: Liquid crystal display
    Size: 10 inch
    Resolution: 1200×2000 px
    Brightness: 400 nits

  •  CPU  Operating Frequency: 2.0GHz, 8-core
    Operating System: Android

  •  Storage  Memory: 6GB RAM
    Storage: 128GB ROM

  • 4G

    Global

  • WiFi

    802.11a/b/g/n/ac, 2.4G/5G

  • Bluetooth

    BT 5.0

  • Operating Temperature

    -10℃ ~ 55℃

  • Storage Temperature

    -10℃ ~ 60℃

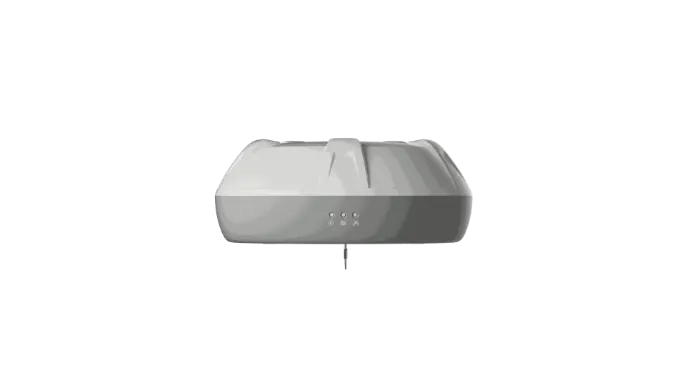

 GNSS Receiver

  •  GNSS Module  SBAS, PPP, RTK supported

  •  IMU   6-axis high-performance IMU

  •  Operating Temperature   -20℃ ~ 70℃

  •  Storage Temperature   -40℃ ~ 85℃

  •  IP Rating   IP66

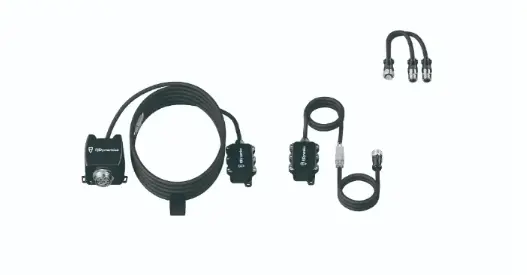

 ISOBUS

  • Operating Voltage
     (9-36) V

  •  Communication Protocol  CAN

  •  Operating Temperature   -30℃~70℃

  •  Storage Temperature   -45℃~85℃

  •  IP Rating   IP67
