SPECs




  • Capacity

    504 Wh


  • Nominal Capacity

    50.4 V 10 Ah


  • Net Weight

    3.6 kg


  • Dimensions

    221 x 146 x 82 mm


  • Battery Type

    Ternary lithium-ion battery


  • Life Cycles

    1000+


  • Operating Voltage

    40~58.8 V


  • DC Charger (100w)

    100 W 5 hrs


  • Dustproof Level

    IP4X


  • Operating Humidity

    0~90%


  • Operating Temperature

    -20°C~55°C


  • Charging Temperature

    0°C~45°C


  • Certification

    UN38.3 ,CB

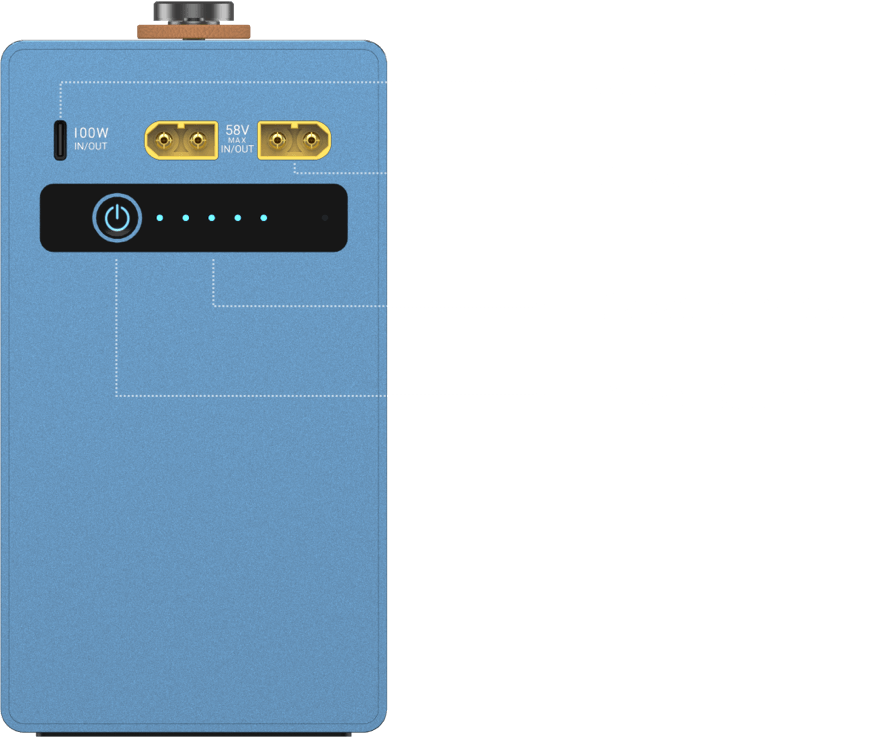

XT60 ports



  • 2(input/output)

    40~58.8 V
    10 A max


DC Ports



  • 1 Accessory box output

    40~58.8 V
    10 A max


Type C ports



  • 1(input/output)

    Charging protocol PD3.1
    Maximum voltage 28 V DC
    Maximum current 5 A
    Maximum power 140 W

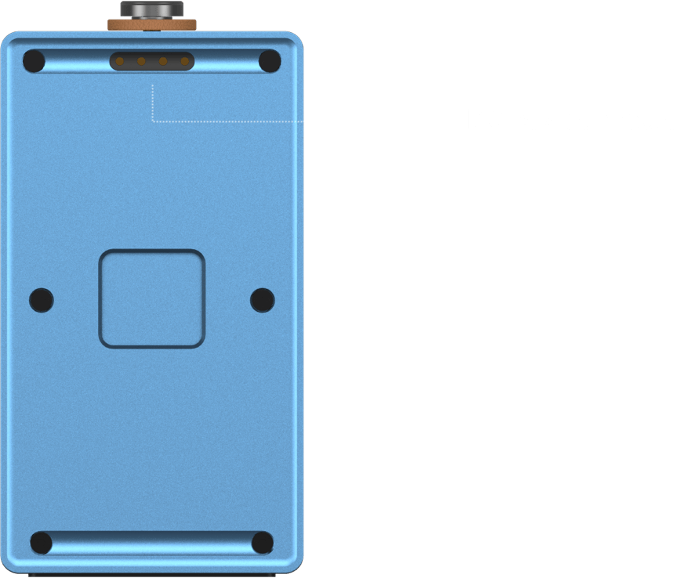

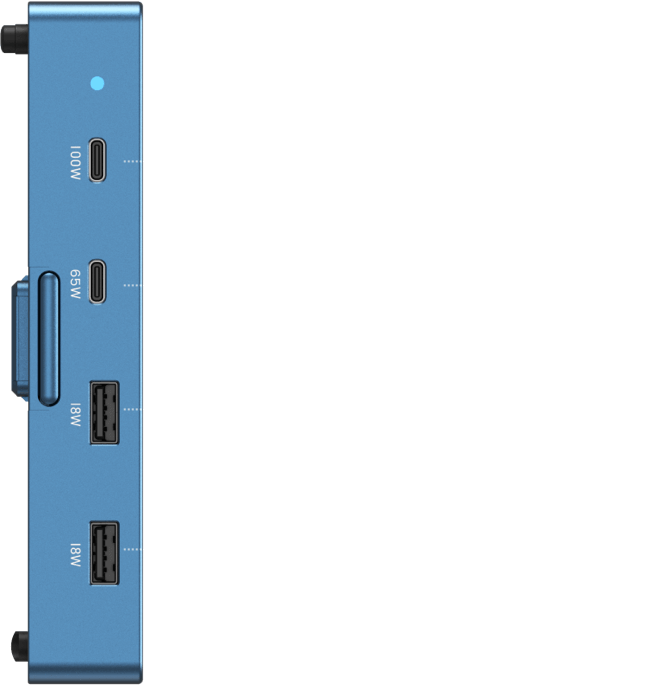

DC BOX



  • Type-C 1

    20 V 5 A 100 W


  • Type-C 2

    20 V 3 A 65 W


  • USB 1

    5 V 3 A 18 W


  • USB 2

    5 V 3 A 18 W
