Hands-Free and More Productive
FJD AT1 Autosteering Kit uses GNSS and RTK to navigate tractors along straight lines, curves, or concentric circles with sub-inch (2.5cm) accuracy. This auto steer works with a wide array of tractors, harvesters, and other agricultural machines.
Hands-Free and More Productive
FJD AT1 Autosteering Kit uses GNSS and RTK to navigate tractors along straight lines, curves, or concentric circles with sub-inch (2.5cm) accuracy. This auto steer works with a wide array of tractors, harvesters, and other agricultural machines.
Hands-Free and More Productive
FJD AT1 Autosteering Kit uses GNSS and RTK to navigate tractors along straight lines, curves, or concentric circles with sub-inch (2.5cm) accuracy. This auto steer works with a wide array of tractors, harvesters, and other agricultural machines.
Hands-Free and More Productive
FJD AT1 Autosteering Kit uses GNSS and RTK to
navigate tractors along straight lines, curves, or
concentric circles with sub-inch (2.5cm) accuracy.
This auto steer works with a wide array of tractors,
harvesters, and other agricultural machines.
FJD AT1 Autosteering Kit uses GNSS and RTK to
navigate tractors along straight lines, curves, or
concentric circles with sub-inch (2.5cm) accuracy.
This auto steer works with a wide array of tractors,
harvesters, and other agricultural machines.
Functions
Functions
Achieved by working GNSS and RTK correction signals together, the latter of which can be sourced from an RTK base station or an NTRIP service provider.
Create field profiles to record boundaries, guidance lines, tasks, and more. So your farming becomes an organized effort.
Straight-line, curve, A+ line, and pivot modes are available for diverse field shapes and operation needs.
The IMU sensor enables terrain compensation so lines on sloped fields are as straight as those on the even ground.
Transfer field info between machines with a USB stick in the format of .SHP (SHX/DBF/SHP) and .ISOXML.
The UT is a plug-and-play user interface for any ISOBUS-compatible implements. It visualizes data and allows users to check and control the implement through FJD's control terminal.
*Please contact your sales manager for the brands and models of implements it's compatible with.
±2.5cm Pass-To-Pass Accuracy
Achieved by working GNSS and RTK correction signals together, the latter of which can be sourced from an RTK base station or an NTRIP service provider.
Field Management
Create field profiles to record boundaries, guidance lines, tasks, and more. So your farming becomes an organized effort.
Advanced Guidance Line
Straight-line, curve, A+ line, and pivot modes are available for diverse field shapes and operation needs.
Terrain Compensation
The IMU sensor enables terrain compensation so lines on sloped fields are as straight as those on the even ground.
GIS Information Transfer
Transfer field info between machines with a USB stick in the format of .SHP (SHX/DBF/SHP) and .ISOXML.
ISOBUS Universal Terminal
The UT is a plug-and-play user interface for any ISOBUS-compatible implements. It visualizes data and allows users to check and control the implement through FJD's control terminal.
*Please contact your sales manager for the brands and models of implements it's compatible with.
2 Modes for Manual Intervention
For safety reasons, 2 modes for manual intervention are provided.

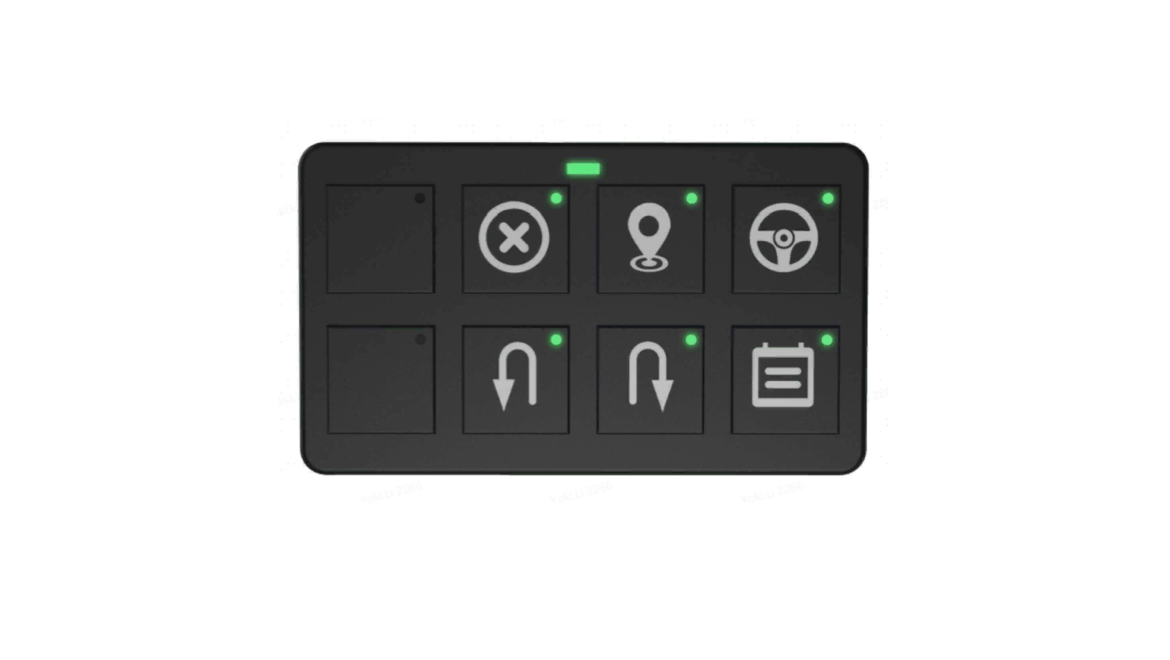

U-turn
Designed to seamlessly guide your tractor through smooth auto turns at the end of rows, it optimizes maneuverability and ensures continuity in your day-to-day farming operations.
U-turn
Designed to seamlessly guide your tractor through smooth auto turns at the end of rows, it optimizes maneuverability and ensures continuity in your day-to-day farming operations.
Comparison
Comparison
|
|
Smart U-turn |
Basic U-turn(Ω shape & fishtail shape) |
|
Suitable For
|
Large fields
|
Any field shape, especially small ones
|
| Path Planning |
Complete path for the whole task
|
Path for one turn
|
| Automatic Turnaround |
√
|
One click for each turn
|
| U-turn Direction |
Both right and left
|
Both right and left
|
| Headland Closing |
√
|
× |
| Boundary Warning |
√
|
√
|
| Overlap Avoidance |
Skip worked area when planning the path
|
× |
|
|
Smart U-turn |
Basic U-turn(Ω shape & fishtail shape) |
|
Suitable For
|
Large fields
|
Any field shape, especially small ones
|
| Path Planning |
Complete path for the whole task
|
Path for one turn
|
| Automatic Turnaround |
√
|
One click for each turn
|
| U-turn Direction |
Both right and left
|
Both right and left
|
| Headland Closing |
√
|
× |
| Boundary Warning |
√
|
√
|
| Overlap Avoidance |
Skip worked area when planning the path
|
× |
Got You Covered Throughout Seasons
Got You Covered Throughout Seasons
Harrowing
Planting
Spraying
Harvesting
Which Fits me Better?
Which Fits me Better?
Constellations
-
GPS: L1 L2；
-
GLONASS: L1, L2;
-
BDS: B1I, B3I, B1C, B2b;
-
Galileo: E1, E5b
-
QZSS: L1, L2
-
GPS: L1C/A, L1C, L2P(W), L2C, L5;
-
GLONASS: L1, L2;
-
BDS: B1I, B2I, B3I, B1C, B2a;
-
Galileo: E1, E5a, E5b
-
QZSS: L1, L2, L5
Control Terminal
-
300 * 190 * 43mm
-
2200g
-
Screen-to-body ratio: 0.5
-
Extensive access ports (13)
-
275 * 180 * 40mm
-
1500g
-
Screen-to-body ratio: 0.73
-
Integrated access ports (6)
GNSS Receiver
-
Positioning and orientation info
-
Accuracy: ±2.5cm
-
/
-
Positioning, orientation, the vehicle’s pitch angle, and roll angle info
-
Accuracy: ±2.5cm
-
Built-in IMU
IMU
-
√
-
Integrated in the GNSS Receiver
FJD AT1
Autosteering Kit
Constellations
-
GPS: L1 L2；
-
GLONASS: L1, L2;
-
BDS: B1I, B3I, B1C, B2b;
-
Galileo: E1, E5b
-
QZSS: L1, L2
-
Control Terminal
-
300 * 190 * 43mm
-
2200g
-
Screen-to-body ratio: 0.5
-
Extensive access ports (13)
-
GNSS Receiver
-
Positioning and orientation info
-
Accuracy: ±2.5cm
-
/
-
IMU
-
√
FJD AT2
Auto Steer System
-
GPS: L1C/A, L1C, L2P(W), L2C, L5;
-
GLONASS: L1, L2;
-
BDS: B1I, B2I, B3I, B1C, B2a;
-
Galileo: E1, E5a, E5b
-
QZSS: L1, L2, L5
-
-
275 * 180 * 40mm
-
1500g
-
Screen-to-body ratio: 0.73
-
Integrated access ports(6)
-
-
Positioning, orientation, the vehicle’s pitch angle, and roll angle info
-
Accuracy: ±2.5cm
-
Built-in IMU
-
-
Integrated in the GNSS Receiver
Extensive Compatibility
Extensive Compatibility
FJD AT1 is compatible with tractors, harvesters, and other agricultural machinery of multiple brands.
Vous êtes intéressé ou vous avez des questions ?
Nos revendeurs sont prêts à vous aider.
Trouver un revendeur
Vous êtes intéressé ou vous avez des questions ?
Nos revendeurs sont prêts à vous aider.
Trouver un revendeur
Customer Stories
Customer Stories
Drew — A farmer in South Africa
"In the traditional farming model, we waste a lot of seeds and fertilizers, and sometimes even land. This auto steer kit from FJDynamics solves the problem of waste."
Nikola — A farmer from Serbia
"This auto steer kit makes my work easier. I can work at night and find the boundaries of the fields. Some fields are up to 800 meters long. If I didn't have this kit, I would never be able to walk straight."
Adriaan — A farmer from Northern Ireland
"I use FJD autosteering kit to avoid spraying twice at one place. This saves me about ＄2000 on my 200-ha farmland."
