FJD SATELLITE

NAVIGATION BASE STATION

FJD RTK base station is used to provide radio RTK correction signal, to achieve centimeter level accuracy
of the positioning and navigation system. It correct GNSS signal to achieve 2.5cm accuracy of
positioning. For FJDynamics' product, it can be equipped with autosteering kit for precise agriculture or
with 3D excavator guidance system for digital construction.

FJD RTK base station is used to provide radio RTK correction signal, to achieve centimeter level accuracy of the positioning and navigation system. It correct GNSS signal to achieve 2.5cm accuracy of positioning. For FJDynamics' product, it can be equipped with autosteering kit for precise agriculture or with 3D excavator guidance system for digital construction.

Removable
Battery

Modular
Design

Quick
Setup

Automated Channel
Detection

Global Signal
Coverage

Centimeter-level
3D Positioning

Removable
Battery

Modular
Design

Quick
Setup

Automated Channel
Detection

Global Signal
Coverage

Centimeter-level
3D Positioning

3D Positioning of WIFI Base Station
Centimeter-level
3D Positioning

Provides real-time differential information for various machines and realizes centimeter-level 3D positioning and precise orientation, covering a radius of 5km where there is no interference or shield.

Centimeter-level 3D Positioning

Provides real-time differential information for various machines and realizes centimeter-level 3D positioning and precise orientation, covering a radius of 5km where there is no interference or shield.

3D Positioning of WIFI Base Station

Global Signal Coverage

The satellite base station receives signals from 16 frequency bands of 5 satellite navigation systems, including GPS, GLONASS, Beidou, GALILEO and QZSS.


Automated Channel Detection

With built-in anti-interference and high-gain antenna and high-performance receiver, it is able to receive more satellite signals through automated channel detection, and reduce user operations




Global Base Station System

Global Signal Coverage

The satellite base station receives signals from 16 frequency bands of 5 satellite navigation systems, including GPS, GLONASS, Beidou, GALILEO and QZSS.

Automated Channel Detection

With built-in anti-interference and high-gain antenna and high-performance receiver, it is able to receive more satellite signals through automated channel detection, and reduce user operations

Global Base Station System
Custom Design Base Station

Quick Setup

IP65 industrial protection is suitable under various outdoor operating environmental conditions. Rapid GNSS base station setup can be realized so long as the right location is selected.


Modular Design

Base station module realizes base station positioning.
Bracket realizes unobstructed working environment and ensures the accuracy and strength of signals.
Antenna stand module (optional) secures stronger positioning signals with the support of external antenna.

Quick Setup

IP65 industrial protection is suitable under various outdoor operating environmental conditions. Rapid GNSS base station setup can be realized so long as the right location is selected.

Modular Design

Base station module realizes base station positioning.
Bracket realizes unobstructed working environment and ensures the accuracy and strength of signals.
Antenna stand module (optional) secures stronger positioning signals with the support of external antenna.

Custom Design Base Station

Removable Battery

Dual-battery provides 12-hour duration and AC power supply supports hot plugging. Battery can be replaced without powering off. Continuous operation is guaranteed.

Removable Battery

Dual-battery provides 12-hour duration and AC power supply supports hot plugging. Battery can be replaced without powering off. Continuous operation is guaranteed.

Base Station in Mobile Communication
Base Station in Mobile Communication

For Precision Agriculture

Guidance and Steering System

Provide reliable and accurate RTK signals for guidance and steering systems, delivering centimeter-level accuracy, which is essential for optimizing farm operations and improving efficiency.

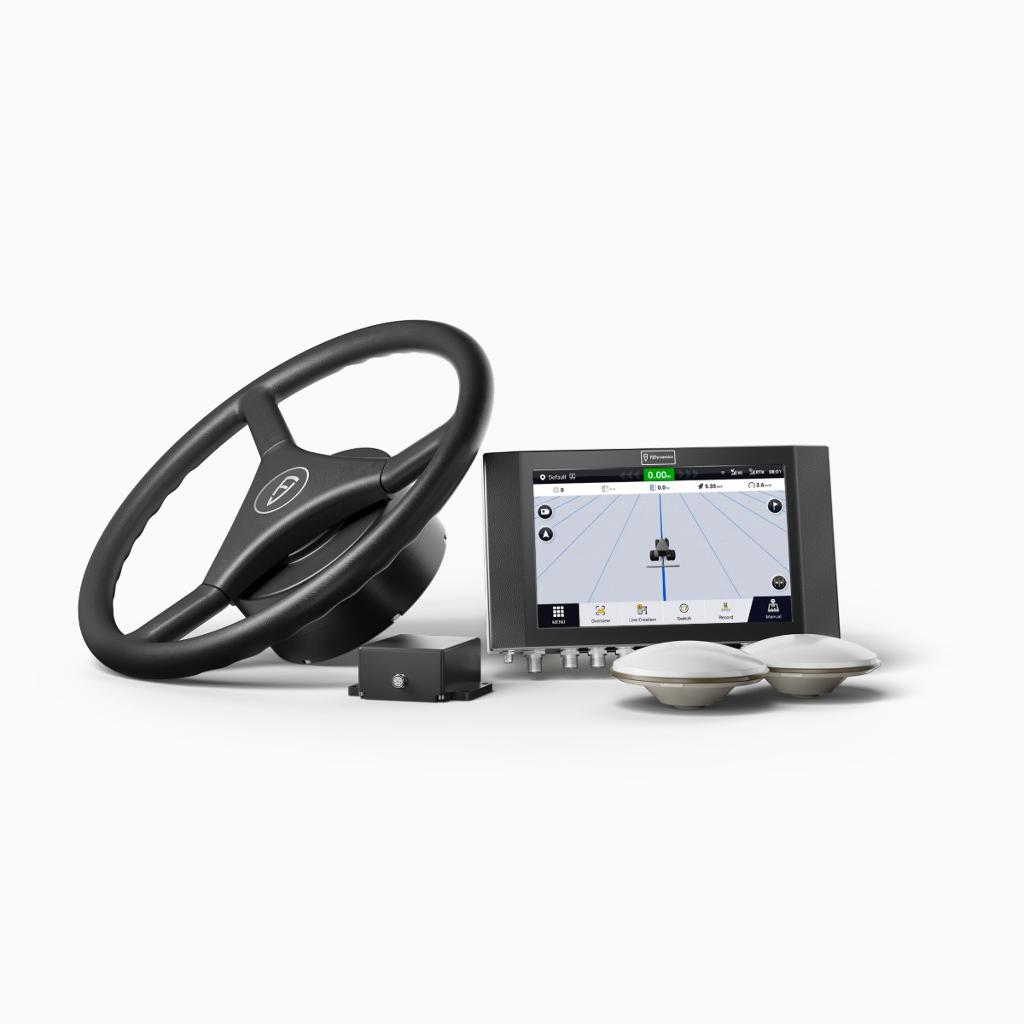

FJD AT1 Autosteering Kit uses GNSS and RTK to navigate tractors along straight lines, curves, or concentric circles with sub-inch (2.5cm) accuracy. This auto steer works with a wide array of tractors, harvesters, and other agricultural machines.

FJD AT1 Autosteering Kit

Learn more

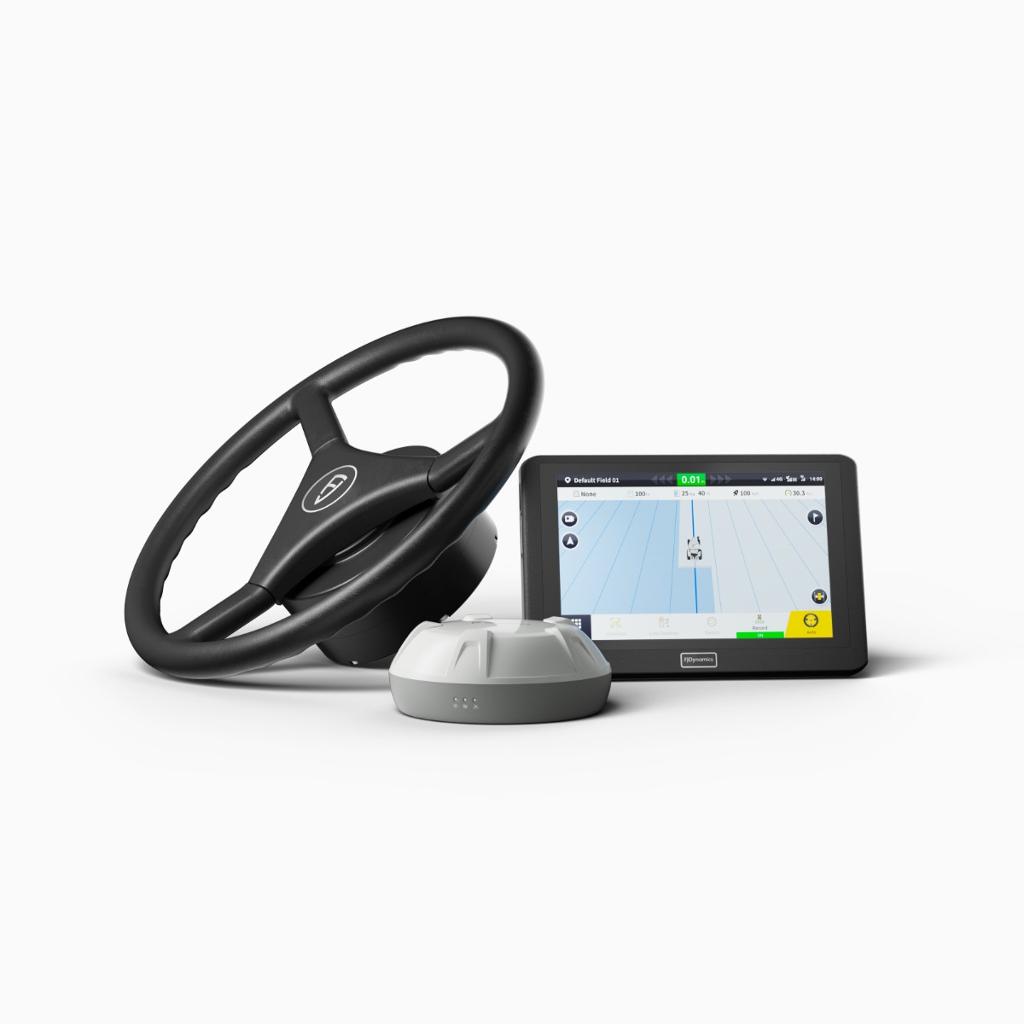

FJD AT2 Auto Steer System combines GNSS and RTK to guarantee a 2.5cm pass-to-pass accuracy on any terrain. It is compatible with a wide range of agricultural machinery and versatile implements.

FJD AT2 Auto Steer System

Learn more

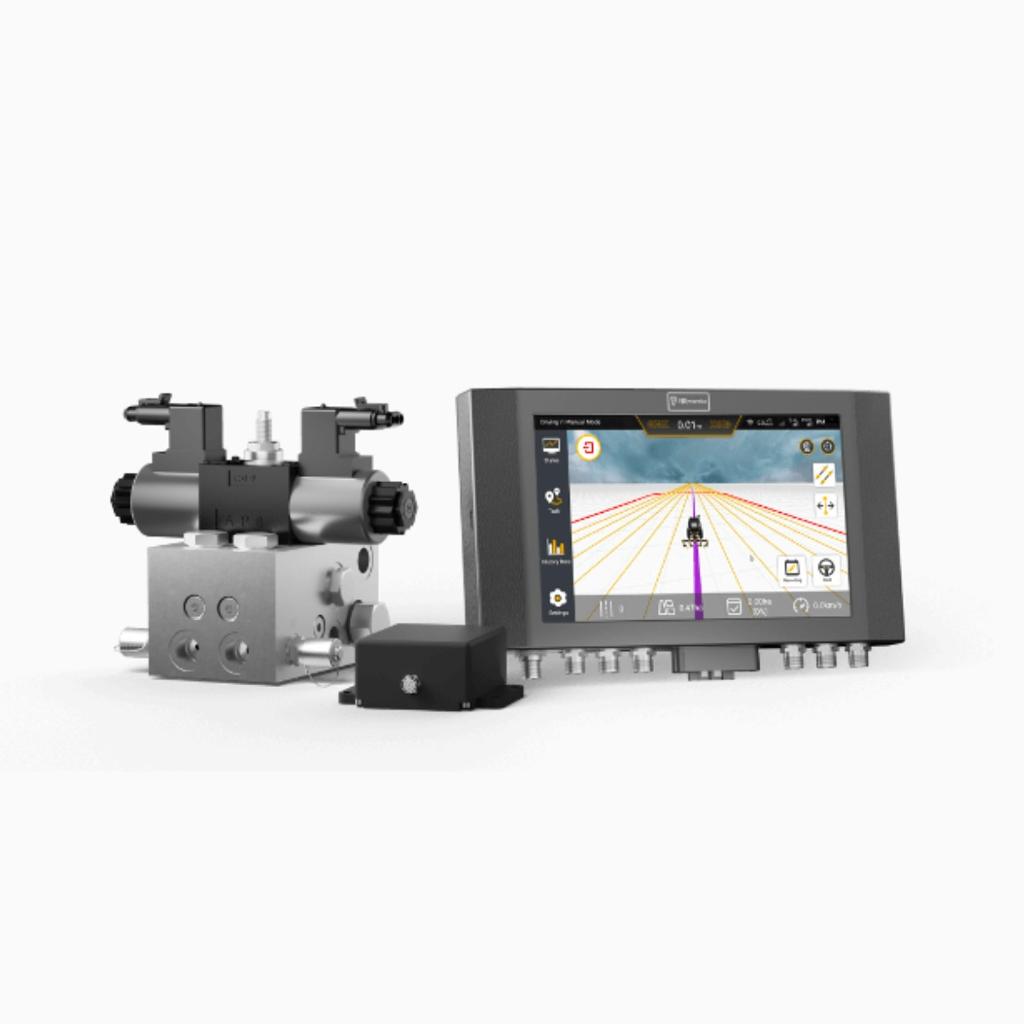

Drawing upon GNSS technology, the AH1 Hydraulic Autosteering Kit empowers agricultural machinery to effectively regulate steering oil, achieving 2.5 cm steering accuracy. Its robust force and quick responsiveness make it the perfect fit for large agricultural machinery that requires significant steering power, enhancing both accuracy and efficiency in field operations.

FJD AH1 Hydraulic Autosteering Kit

Learn more

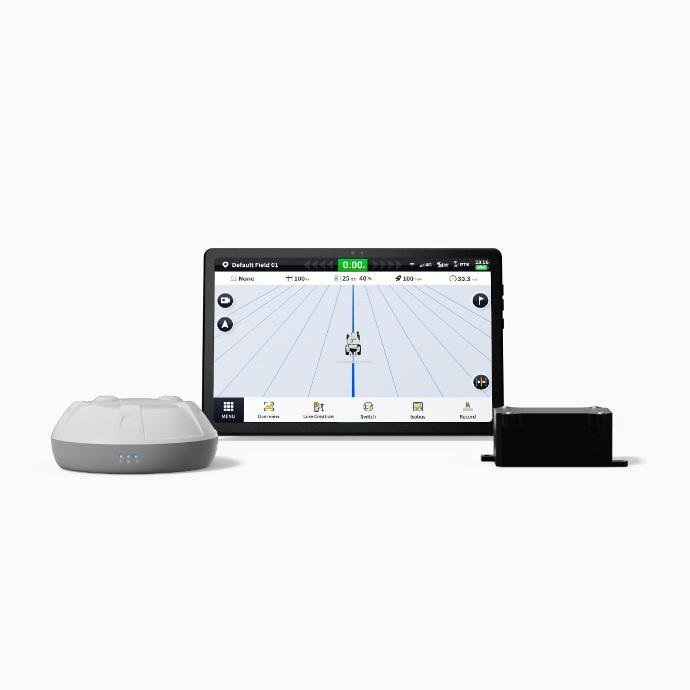

The FJD AG1 Guidance System integrates various positioning technologies (PPP, RTK, SBAS), offering precise location accuracy of up to 2.5cm for manual steering and assisting users in staying on the planned path. With its simplified configuration and an entry-level price, it significantly boosts efficiency while keeping costs in check, providing a streamlined experience.

FJD AG1 Guidance System

Learn more

Land Leveling System

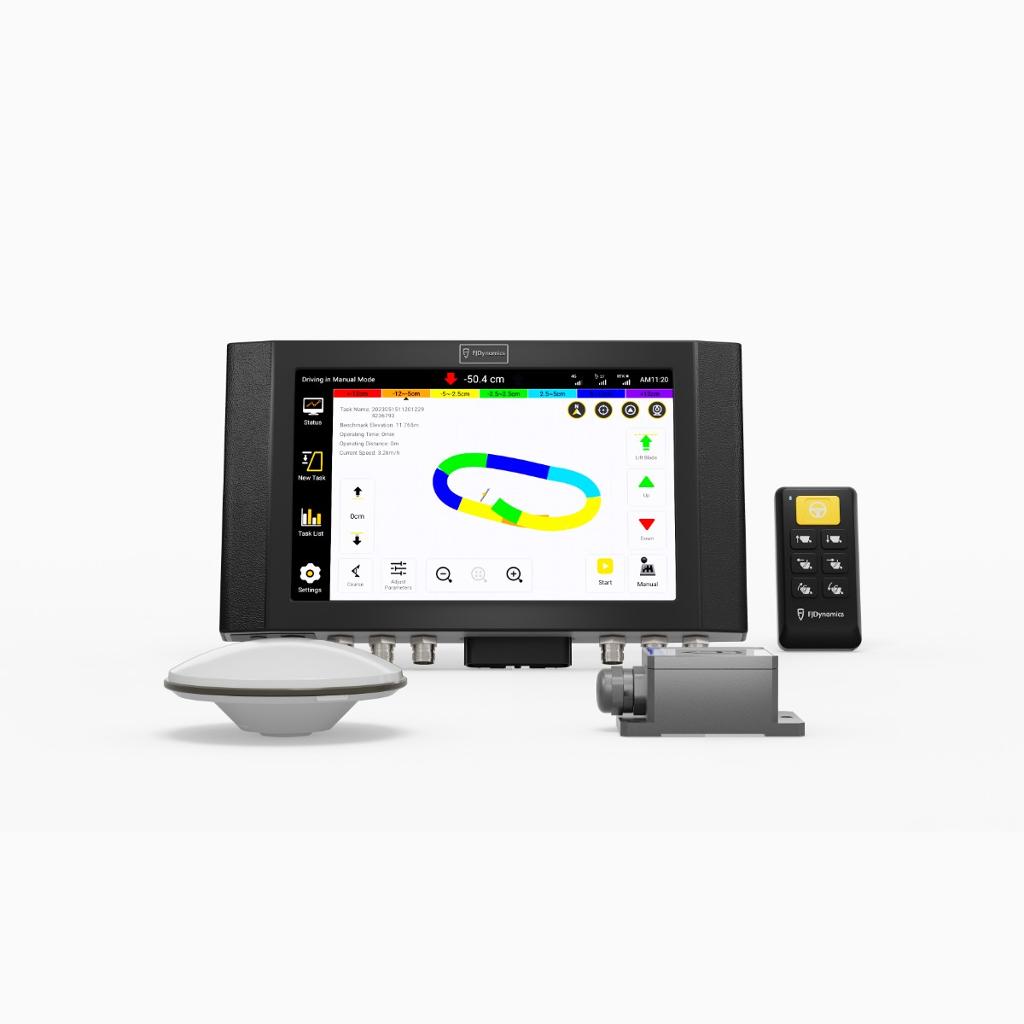

FJD AL01 3D Land Leveling System utilizes GNSS & RTK high-precision positioning technology to provide comprehensive solutions for farmland leveling and terrain planning. Our system ensures a smooth and uniform terrain through precise terrain survey and design, substantially enhancing water management and crop production in your field.

FJD AL01 3D Land Leveling System

Learn more

FJD AT1 Autosteering Kit

Provides stable RTK data for mobile devices
with radio module and allows agricultural
machinery to achieve centimeter-level
positioning accuracy.


FJD AL01 3D Land Leveling System

Provides centimeter-level accuracy for
farmland leveling, helping optimize water
management, improve productivity, and
increase yields.


FJD AT1 Autosteering Kit

Provides stable RTK data for mobile devices with radio module and allows agricultural machinery to achieve centimeter-level positioning accuracy.


FJD AL01 3D Land Leveling System

Provides centimeter-level accuracy for farmland leveling, helping optimize water management, improve productivity, and increase yields.


Specification

Satellite and Positioning

Satellite Tracking 624 channels available.
Support complete constellation of Beidou.
Can be upgraded to Beidou III satellite.
Tracking Features BDS: B1/B2, (Can be upgraded to B3)
GPS: L1/L2
GLONASS: L1/L2
GALILIEO: E1/E5B
QZSS: L1/L2
RTK Positioning Accuracy Plane: 1cm+1ppm
Elevation: 1.5cm+1ppm
Single Point Positioning Plane: 1.5m
Elevation: 2.5m
DGPS Accuracy Plane: 0.4m
Elevation: 0.8m
Positioning Update Rate 1Hz, 2Hz, 5Hz, 10Hz and 20Hz
Initialization Time <10 seconds
Recapture <1 second
Initialization Reliability >99.9%
Differential Data Transport Format RTCM v3.0/3.2
Battery Features Double battery compartments,
10400mAh 7.4V (single battery 5200 mAh)
Mobile station lasts up to 12 hours,
hot plugging supported
Power Adapter Input: AC 100-240V 50/60Hz Output: 12V 5A
Battery Charger QC3.0 fast charge

Physical Properties

Dimensions Φ178*110mm
Material Aluminum alloy
Waterproof and Dustproof IP65
Working Temperature -40℃ - 65℃
Storage Temperature -50℃ - 75℃
