Smart
U-turn
Basic
U-turn
ISOBUS VT/TC
*
Advanced Guidance Line
Terrain Compensation
Farm Management
User-friendly Interface
Online Support & OTA
Smart
U-turn
Basic
U-turn
ISOBUS
VT/TC
*
Advanced
Guidance Line
Terrain
Compensation
Farm
Management
User-friendly
Interface
Online
Support & OTA
*
Applicable to version 4.1.2.5x and later versions.
Please consult the local dealer for the start of sales time.
*
Applicable to version 4.1.2.5x and later versions.
Please consult the local dealer for the start of sales time.
Navigate to Next-level Efficiency
Navigate to Next-level Efficiency
FJD AT2 Auto Steer System combines GNSS and RTK to guarantee a 2.5cm pass-to-pass accuracy on any terrain. It is compatible with a wide range of agricultural machinery and versatile implements. With this system, you can reduce skips and overlaps, save on input costs, work at night, and save your neck from looking back and forth.
U-turn
Designed to seamlessly guide your tractor through smooth auto turns at the end of rows, it optimizes maneuverability and ensures continuity in your day-to-day farming operations.
Comparison
|
|
Smart U-turn |
Basic U-turn(Ω shape & fishtail shape) |
|
Suitable For
|
Large fields
|
Any field shape, especially small ones
|
| Path Planning |
Complete path for the whole task
|
Path for one turn
|
| Automatic Turnaround |
√
|
One click for each turn
|
| U-turn Direction |
Both right and left
|
Both right and left
|
| Headland Closing |
√
|
× |
| Boundary Warning |
√
|
√
|
| Overlap Avoidance |
Skip worked area when planning the path
|
× |
FJD AT2 Auto Steer System combines GNSS and RTK to guarantee a 2.5cm pass-to-pass accuracy on any terrain. It is compatible with a wide range of agricultural machinery and versatile implements. With this system, you can reduce skips and overlaps, save on input costs, work at night, and save your neck from looking back and forth.
U-turn
Designed to seamlessly guide your tractor through smooth auto turns at the end of rows, it optimizes maneuverability and ensures continuity in your day-to-day farming operations.
ISOBUS VT/TC*
Supports a wide range of mainstream implement brands, including Kverneland, Horsch, CASE IH, New Holland, Lemken, Amazone, Topcon, and more, for various types of implements such as seeding, spraying, and fertilizing.
*Applicable to version 4.1.2.5x and later versions.
Comparison
|
|
Smart U-turn |
Basic U-turn(Ω shape & fishtail shape) |
|
Suitable For
|
Large fields
|
Any field shape, especially small ones
|
| Path Planning |
Complete path for the whole task
|
Path for one turn
|
| Automatic Turnaround |
√
|
One click for each turn
|
| U-turn Direction |
Both right and left
|
Both right and left
|
| Headland Closing |
√
|
× |
| Boundary Warning |
√
|
√
|
| Overlap Avoidance |
Skip worked area when planning the path
|
× |
ISOBUS VT/TC*
Supports a wide range of mainstream implement brands, including Kverneland, Horsch, CASE IH, New Holland, Lemken, Amazone, Topcon, and more, for various types of implements such as seeding, spraying, and fertilizing.
*Applicable to version 4.1.2.5x and later versions.
Functions
Functions
Extensive Compatibility
Accommodating an extensive range of agricultural machinery, our system supports mainstream tractor brands, rice transplanters, harvesters, and plant protection equipment.
*Applicable to version 4.1.2.5x and later versions.

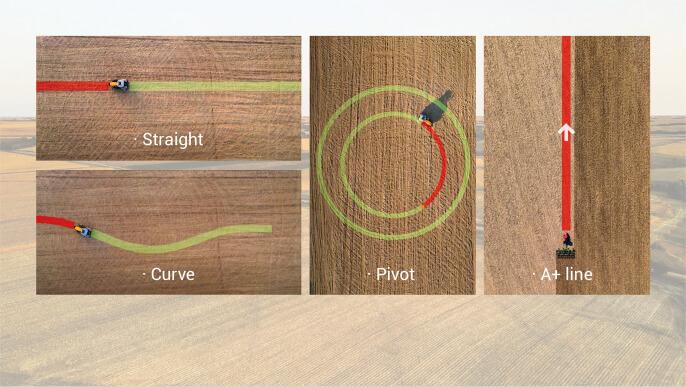

Guidance Line Management
The system enables the adjustment of guidance lines for improved accuracy and facilitates the sharing of these lines between two tractors operating within the same field.

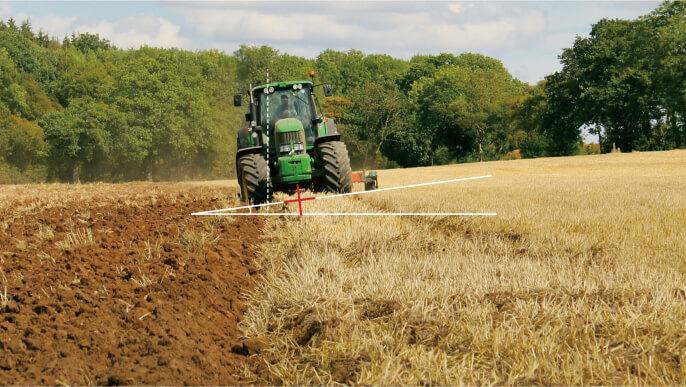

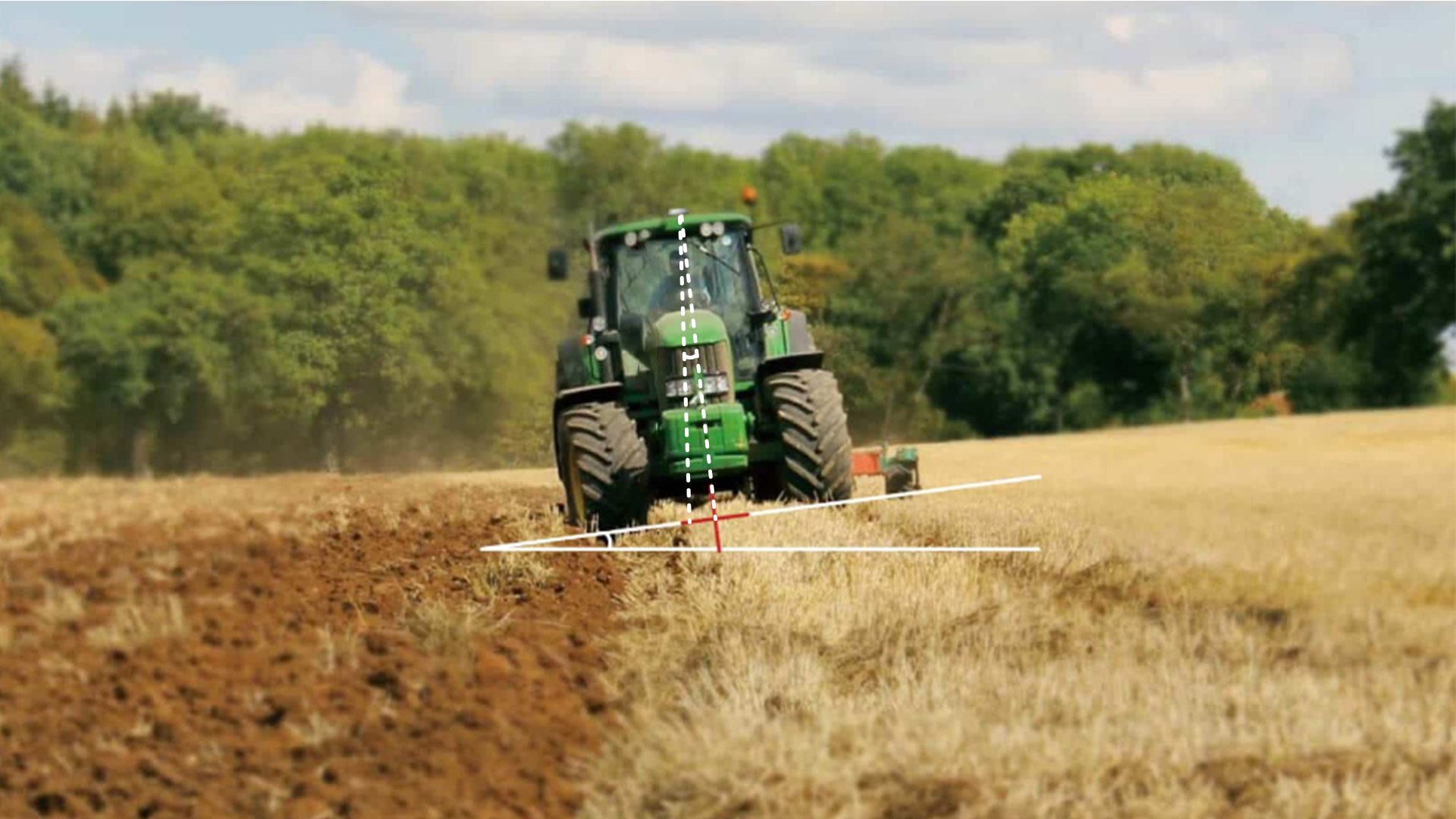

Terrain Compensation
Reliable accuracy is ensured even on challenging landscapes, such as rolling terrains, slopes, and rough ground.
User-friendly Interface
Simplified navigation allows for easy switching of guidance lines and boundaries, shortening task paths and providing quick, precise access to desired functions or entries.
Farm Management
Basic information, like boundaries and guidance lines created on the platform, can be synchronized to the control terminal to improve management efficiency.
The system enables the adjustment of guidance lines for improved accuracy and facilitates the sharing of these lines between two tractors operating within the same field.
Which fits me better?
Which fits me better?
Constellations
-
GPS: L1 L2；
-
GLONASS: L1, L2;
-
BDS: B1I, B3I, B1C, B2b;
-
Galileo: E1, E5b
-
QZSS: L1, L2
-
GPS: L1C/A, L1C, L2P(W), L2C, L5;
-
GLONASS: L1, L2;
-
BDS: B1I, B2I, B3I, B1C, B2a;
-
Galileo: E1, E5a, E5b
-
QZSS: L1, L2, L5
Control Terminal
-
300 * 190 * 43mm
-
2200g
-
Screen-to-body ratio: 0.5
-
Extensive access ports (13)
-
275 * 180 * 40mm
-
1500g
-
Screen-to-body ratio: 0.73
-
Integrated access ports(6)
GNSS Receiver
-
Positioning and orientation info
-
Accuracy: ±2.5cm
-
/
-
Positioning, orientation, the vehicle’s pitch angle, and roll angle info
-
Accuracy: ±2.5cm
-
Built-in IMU
IMU
-
√
-
Integrated in the GNSS Receiver
FJD AT1
Autosteering Kit
Constellations
-
GPS: L1 L2；
-
GLONASS: L1, L2;
-
BDS: B1I, B3I, B1C, B2b;
-
Galileo: E1, E5b
-
QZSS: L1, L2
-
Control Terminal
-
300 * 190 * 43mm
-
2200g
-
Screen-to-body ratio: 0.5
-
Extensive access ports (13)
-
GNSS Receiver
-
Positioning and orientation info
-
Accuracy: ±2.5cm
-
/
-
IMU
-
√
FJD AT2
Auto Steer System
-
GPS: L1C/A, L1C, L2P(W), L2C, L5;
-
GLONASS: L1, L2;
-
BDS: B1I, B2I, B3I, B1C, B2a;
-
Galileo: E1, E5a, E5b
-
QZSS: L1, L2, L5
-
-
275 * 180 * 40mm
-
1500g
-
Screen-to-body ratio: 0.73
-
Integrated access ports(6)
-
-
Positioning, orientation, the vehicle’s pitch angle, and roll angle info
-
Accuracy: ±2.5cm
-
Built-in IMU
-
-
Integrated in the GNSS Receiver
Got You Covered Throughout Seasons
Got You Covered Throughout Seasons
Harrowing
Planting
Spraying
Harvesting
Accessories
Accessories
Deliver accurate positions in harsh environments with global signal coverage.
Sends real-time footage (1080P) to the control terminal from as far away as 20 meters, even at night (infrared night vision enabled).
Allows you to control the autosteer remotely when the touchscreen is out of reach.
FJD V1 Base Station
Deliver accurate positions in harsh environments with global signal coverage.

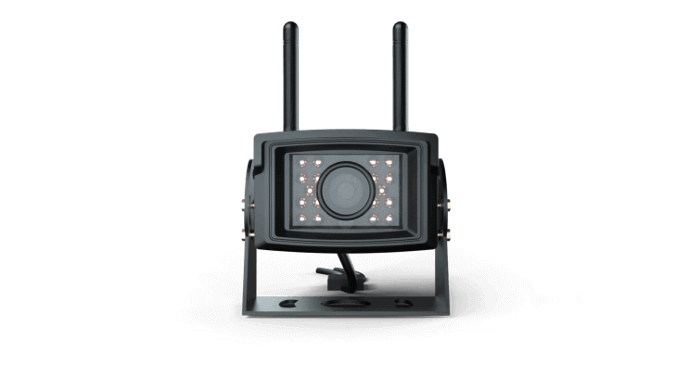

FJD Wi-Fi Camera
Sends real-time footage (1080P) to the control terminal from as far away as 20 meters, even at night (infrared night vision enabled).

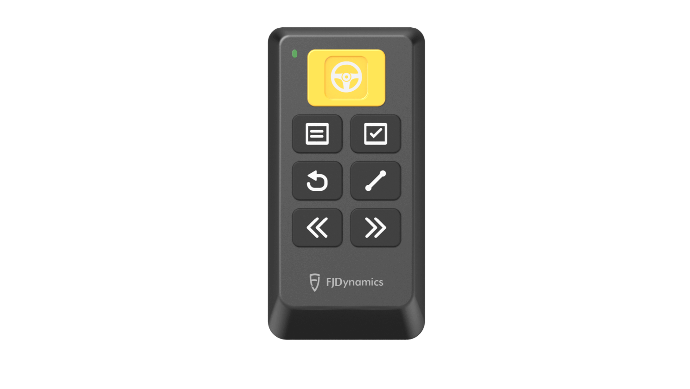

FJD Easy Control
Allows you to control the autosteer remotely when the touchscreen is out of reach.

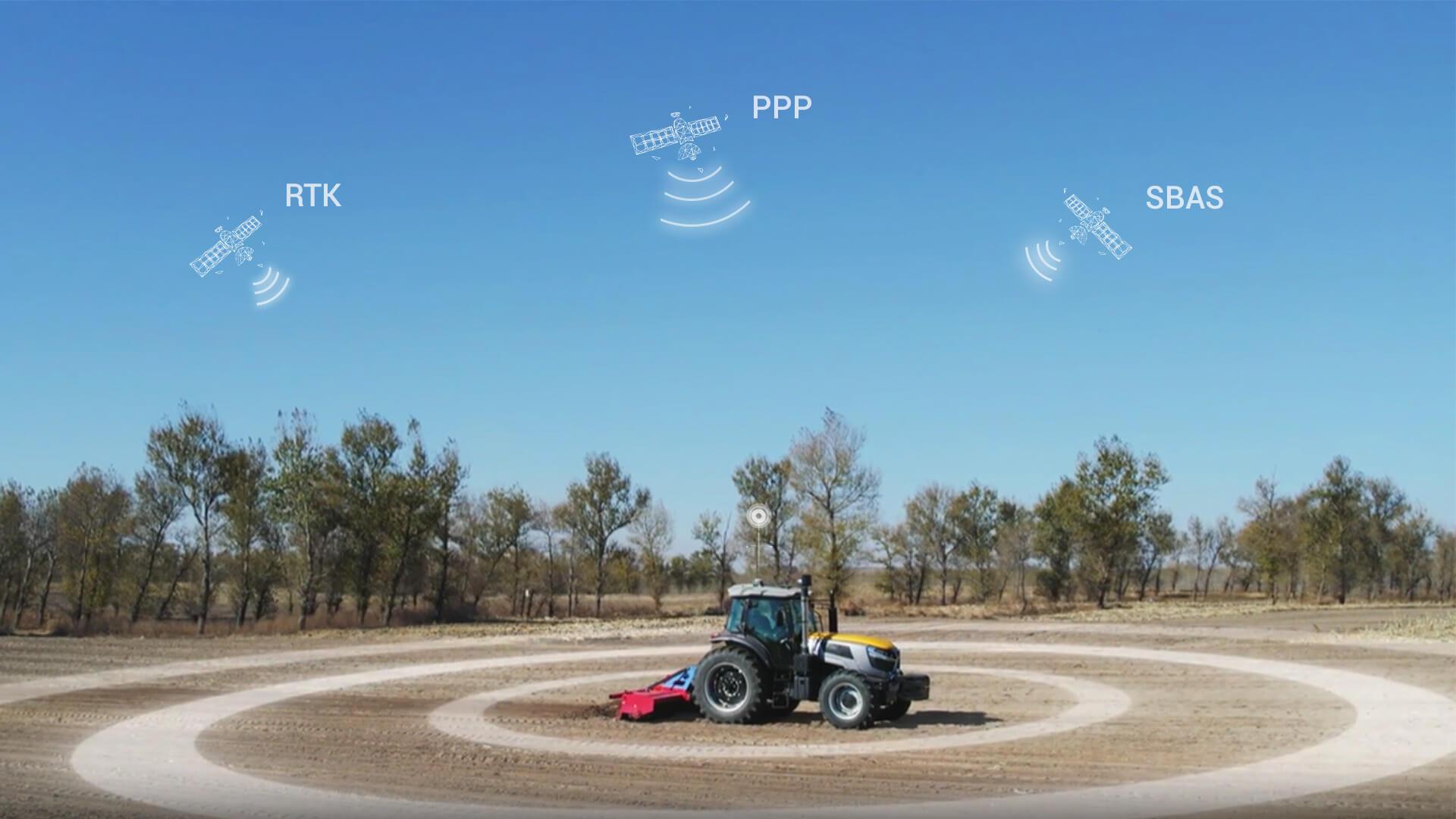

Advanced Option
FJD AT2 PRO Auto Steer System
FJD AT2 PRO Auto Steer System
Available Worldwide
Centimeter-level Accuracy
Free From The Base Station
Free From Network Constraints
Available Worldwide
Centimeter-level Accuracy
Free From The Base Station
Free From Network Constraints
*Note: Provided by Trimble.
