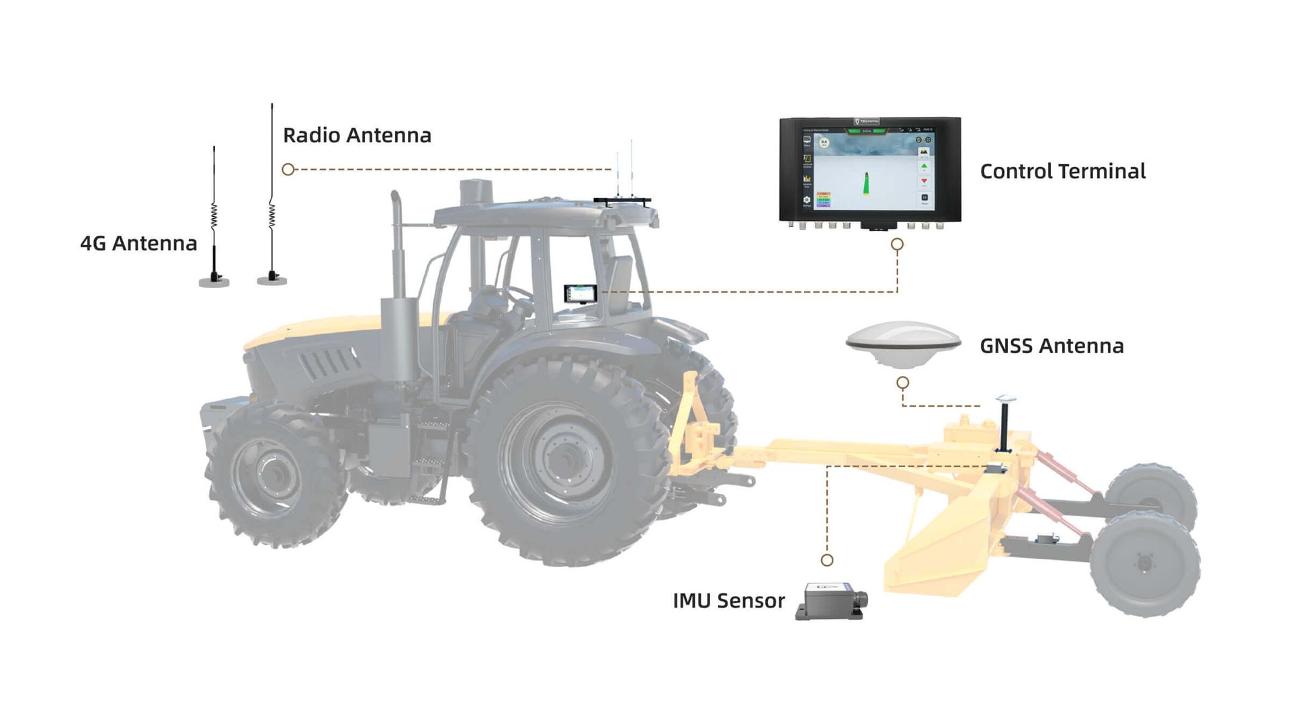

Standard Components

Standard Components



Control Terminal

Real-time display of leveling situation, vehicle position and RTK status. Saving on leveling benchmark and operation information.


  • Size(mm)

    300 x 190 x 43


  • OS

    Android 5.1


  • Network Module

    4G. Compatible with 2G/3G


  • Screen

    10.1 inch, 1280 x 800 pixels, LED backlight


  • IP Rating

    IP65


  • Power Supply

    10 V - 30 V


  • Access Port

    CameraX2, radio×1, 4G×1, GNSS×2, IP Rating image transmission×2



GNSS Antenna

Receive positioning and orientation information for better control of the land leveling system.


  • Size (mm)

    152 × 63


  • Signal Frequency

    GPS L1/L2, GLONASS L1/L2, BDS B1/B2/B3


  • IP Rating

    IP67


  • Operating Temperature

    -20℃ ~ 70℃



Radio Antenna

Receive the base station RTK signal.


  • Frequency bands

    433/470 MHz


  • Max. power

    100 W


  • Operating Temperature

    -20℃ ~ 65℃



4G Antenna

Receive the network(4G) RTK signal.


  • Frequency bands

    B1/B2/B3/B5/B8/B38/B39/B40/B41


  • Max. power

    100 W


  • Operating Temperature

    -20℃ ~ 65℃



IMU

Calculate and communicate the real-time position of the blade to control terminal.


  • Size (mm)

    55 × 37 × 24 mm


  • Static Accuracy

    0.3°


  • Power Supply

     5V DC



Control Terminal

Real-time display of leveling situation, vehicle position and RTK status. Saving on leveling benchmark and operation information.


  • Size(mm)

    300 x 190 x 43


  • OS

    Android 5.1


  • Network Module

    4G. Compatible with 2G/3G


  • Screen

    10.1 inch, 1280 x 800 pixels, LED backlight


  • Waterproof and Dustproof

    IP65


  • Power Supply

    10 V - 30 V


  • Access Port


    CameraX2, radio×1, 4G×1, GNSS×2,

  • IP Rating image transmission×2



GNSS Antenna

Receive positioning and orientation information for better control of the land leveling system.


  • Size (mm)

    152 × 63


  • Signal Frequency

    GPS L1/L2, GLONASS L1/L2, BDS B1/B2/B3


  • IP Rating

    IP67


  • Operating Temperature

    -20℃ ~ 70℃



Radio Antenna

Receive the base station RTK signal.


  • Frequency bands

    433/470 MHz


  • Max. power

    100 W


  • Operating Temperature

    -20℃ ~ 65℃



4G Antenna

Receive the network(4G) RTK signal.


  • Frequency bands

    B1/B2/B3/B5/B8/B38/B39/B40/B41


  • Max. power

    100 W


  • Operating Temperature

    -20℃ ~ 65℃



IMU

Calculate and communicate the real-time position of the blade to control terminal.


  • Size (mm)

    55 × 37 × 24 mm


  • Static Accuracy

    0.3°


  • Power Supply

     5V DC
