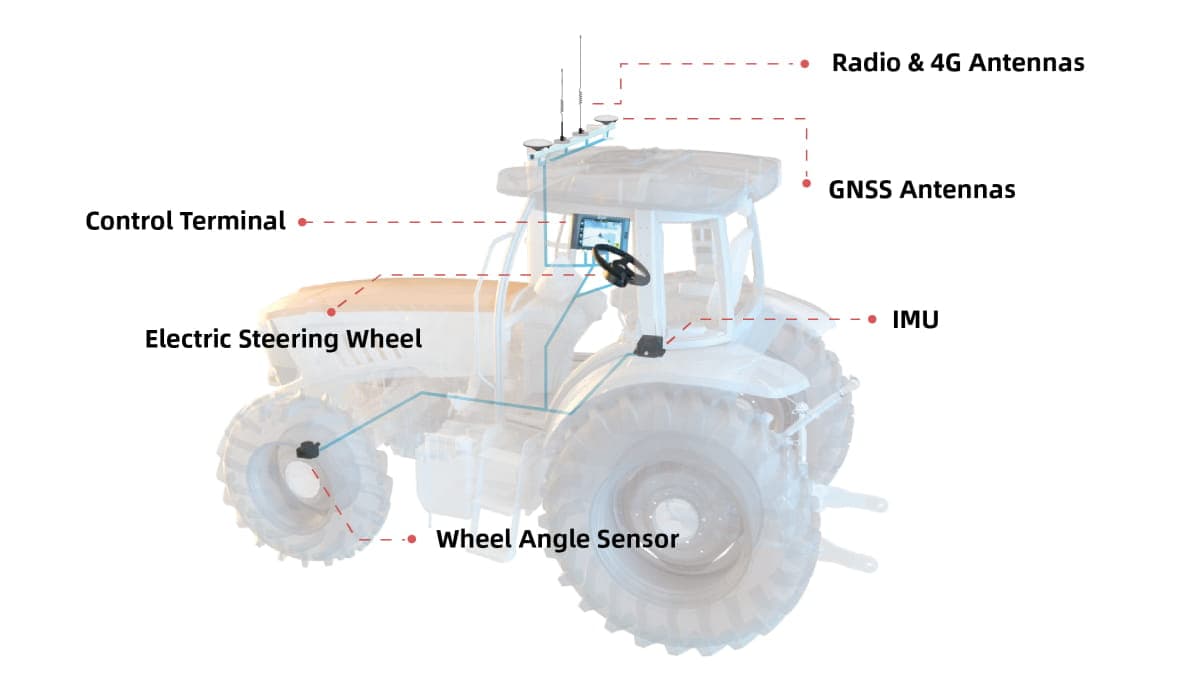

Standard Components

Standard Components

auto steer for tractor, auto steer tractors for sale, auto steer systems for tractors, auto steer tractor gps, how does auto steer on a tractor work, what is auto steer on a tractor, gps auto steer for tractors, used auto steer for tractors, smart agriculture, smart agriculture technology

Electric Steering Wheel

  • Consists of a steering motor and a steering wheel. Ensures proper operation even in harsh scenarios. Interchangeable between autosteer and manual control. No need to change the original tractor hydraulic system.


  • Maximum Torque

    300 x 190 x 43 mm


  • Power Input

    12/24 V DC


  • Operating Temperature

    -20℃ ~ 70℃


  • Storage Temperature

    -55℃ ~ 85℃


Electric Steering Wheel

Consists of a steering motor and a steering wheel. Ensures proper operation even in harsh scenarios. Interchangeable between autosteer and manual control. No need to change the original tractor hydraulic system.

  • 寸法

    370 × 370 × 123 mm


  • Maximum Torque

    300 x 190 x 43 mm


  • Power Input

    12/24 V DC


  • Operating Temperature

    -20℃ ~ 70℃


  • Storage Temperature

    -55℃ ~ 85℃



  • 寸法

    410 × 410 × 135 mm


  • 最大トルク

    30 N·m


  • 入力電源

    12 V/24 V


  • 防水防塵

    IP65


Display & Control Terminal

  • The 10.1'' touch screen displays operation status and controls the whole system.


  • Size

    300 x 190 x 43 mm


  • Screen

    10.1-inch LCD Screen with LED Backlight


  • Power Supply

    10 V - 30 V


  • Network Module

    4G. Compatible with 2G/3G


  • Pixel

    1280 x 800 pixels


  • Waterproof and Dustproof

    IP67


  • Operating Temperature

    -30℃ ~ 70℃


  • Storage Temperature

    -40℃ ~ 85℃


Antennas

  • GNSS Antenna
    Receive satellite signals to determine the coordinates of the tractor. The auto steer for tractor comes with two GNSS antennas: one for positioning and one for orientation.



  • Frequency

    GPS: L1C/A, L1C, L2P(W), L2C, L5; GLONASS: L1, L2;
    BDS: B1I, B2I, B3I, B1C, B2a; Galileo: E1, E5a, E5b; SBAS: WAAS, EGNOS, MSAS


  • Operating Temperature

    -20℃ ~ 70℃


  • Storage Temperature

    -55℃ ~ 85℃


  • 4G Antenna
    Receives correctional signals via the internet (NTRIP) and communicates them between the control terminal and the 4G network.



  • Radio Antenna
    Receives correctional signals from the base station and feeds them to the control terminal.



IMU: Attitude Sensor

  • Compensates terrain — your tractor paths on sloped areas will be as straight as those on leveled ground.


  • Power Input

    5 V


Wheel Angle Sensor

  • Wheel Angle Sensor Monitors wheels' rotational angles and tells the control terminal where the tractor is headed.


  • Waterproof and Dustproof

    IP67


  • Operating Temperature

    -40℃ ~ 85℃
