Fast, precise 3D models. Point cloud models on your mobile in real-time as you scan indoors & outdoors. Powered by a leading SLAM algorithm, FJD Trion S1 3D LiDAR Scanner builds your reality as you scan.



S1


  • Range

    120 m @ 90% reflectivity

  • 80 m @ 10% reflectivity

  • Sensors

    16
    32 (S1 Pro)

  • Laser Class

    Class 1/λ 905 nm

  • Vertical Angular Resolution

    2°

  • FOV

    360° × 270°

  • Horizontal Angular Resolution

    0.36°

  • IP

    IP54

  • Relative Accuracy


  • Processing

    Real-Time

  • Carrier

    Handheld, Backpack or shoulder strap

  • Datalogger weight

    2.2 kg

  • Battery life (Dual batteries)

    4 h

  • Scanner Weight

    1.8 kg

  • Storage Capacity


  • Points Per Second

    320,000
    640,000 (S1 Pro)

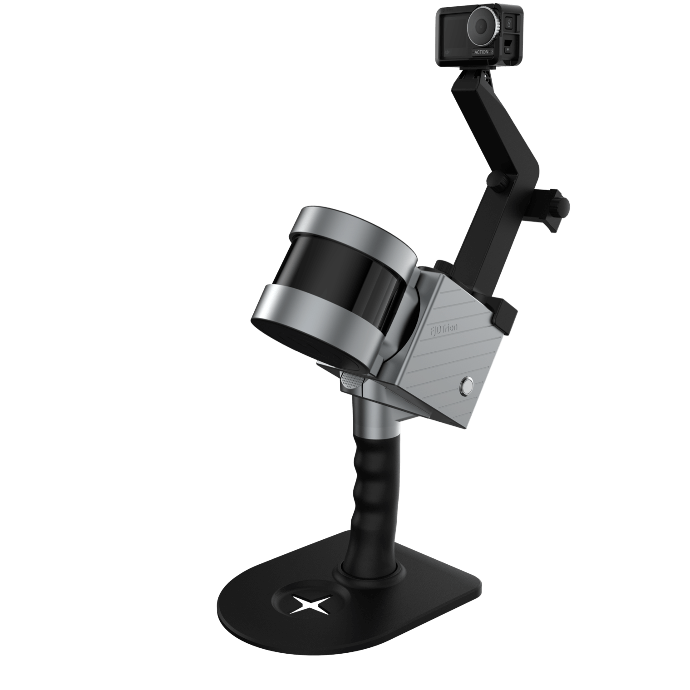

This optional add-on panoramic camera provides RGB and texture information to your point clouds and mesh, so you can bring more reality to life.



Camera


  • Camera Type

    360° Panoramic Lens

  • FOV

    360°

  • Data Format

    insv

  • Photo Resolution

    72 million pixels (11968x5984)
    18 million pixels (5952x2976)

  • Video Resolution

    5.7K: 5760x2880@30fps

  • Dimension

    46.0×114.0×33.1mm

  • Storage Capacity

    128 GB (Maximum Expansion IT)

  • Weight

    180g

  • Power Supply

    S1/Camera Battery

  • Working Temperature

    -20℃ ~ 40℃

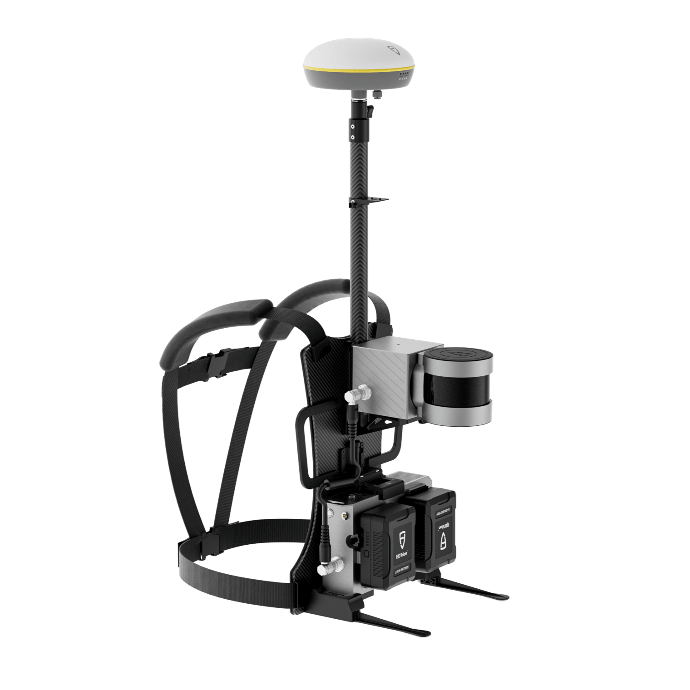

Pair the backpack with the FJD Trion V1t RTK Rover for geo-referenced point clouds with centimeter-level accuracy. Perfect for outdoor mobile scanning projects, this combination eliminates the need for external control points.



FJD Trion V1t RTK Rover


  • Satellite Constellation Supported

    GPS, BDS-2, BDS-3, GLONASS,
    Galileo, QZSS, SBAS, IRNSS

  • Channels

    965

  • RTK Format

    GGA, ZDA

  • RTK Frequency

    1-10 hz

  • Communication

    RS232

Backpack


  • Weight

    8.2kg (Including S1 and V1t RTK Rover)

  • Dimensions

    310 × 240 × 810 mm
